How to Use Ancel AD310 to Read & Erase DTC for Hyundai

Here is a test case on Hyundai vehicle model made 2015.I try to read and erase the DTCs to reset the check engine light by Ancel AD310.

ancel scanner obd2 scanner-123

Note:Here just for perform read & erase trouble codes to reset check engine light.You would better to repair the your vehicle problem by the trouble code prompt,then erase the trouble.Otherwise the engine light will come back if you just erase.



Procedures:

Plug the Ancel AD310 to the vehicle OBD port.

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (1) How to Use Ancel AD310 to Read & Erase DTC for Hyundai (2)

Once you connect to OBD port,the AD310 will turn on.
And it will prompt you to ignition on,and press any key to continue

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (3)

Then the Ancel AD310 will communicate to vehicle,waiting for vehicle to respond.

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (4)

The device prompt “Codes Found—–1”

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (5) How to Use Ancel AD310 to Read & Erase DTC for Hyundai (6)

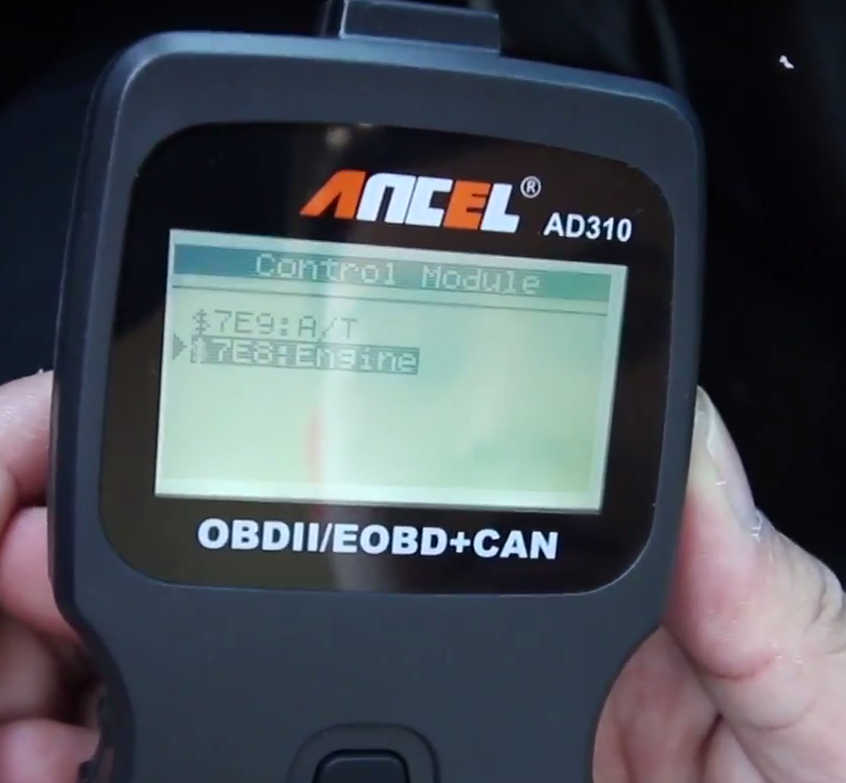

Select “Engine”

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (7)

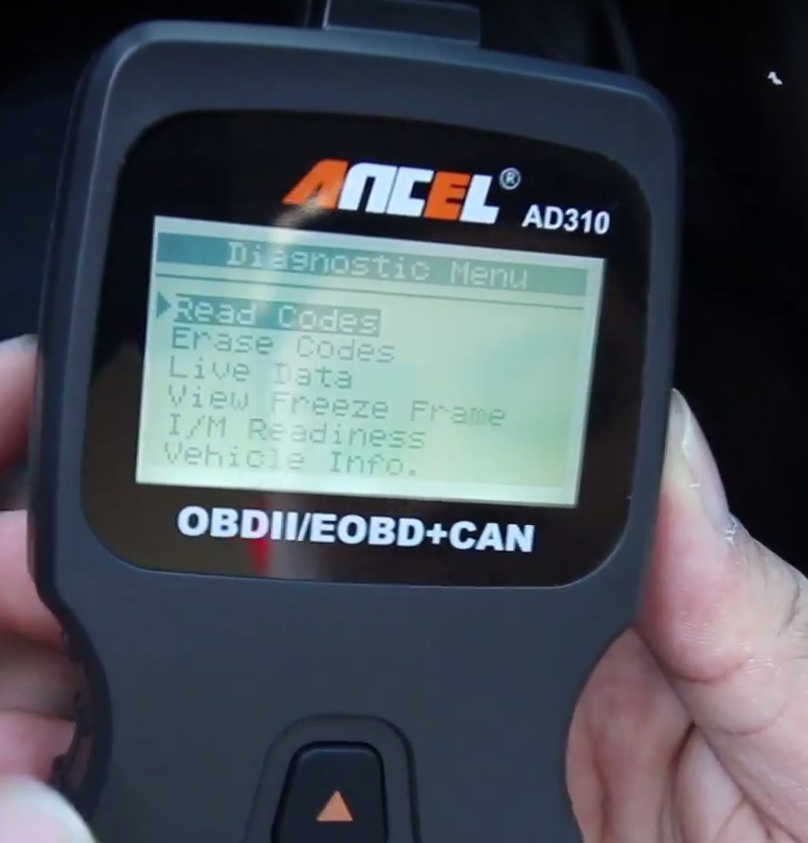

Read Code

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (8)

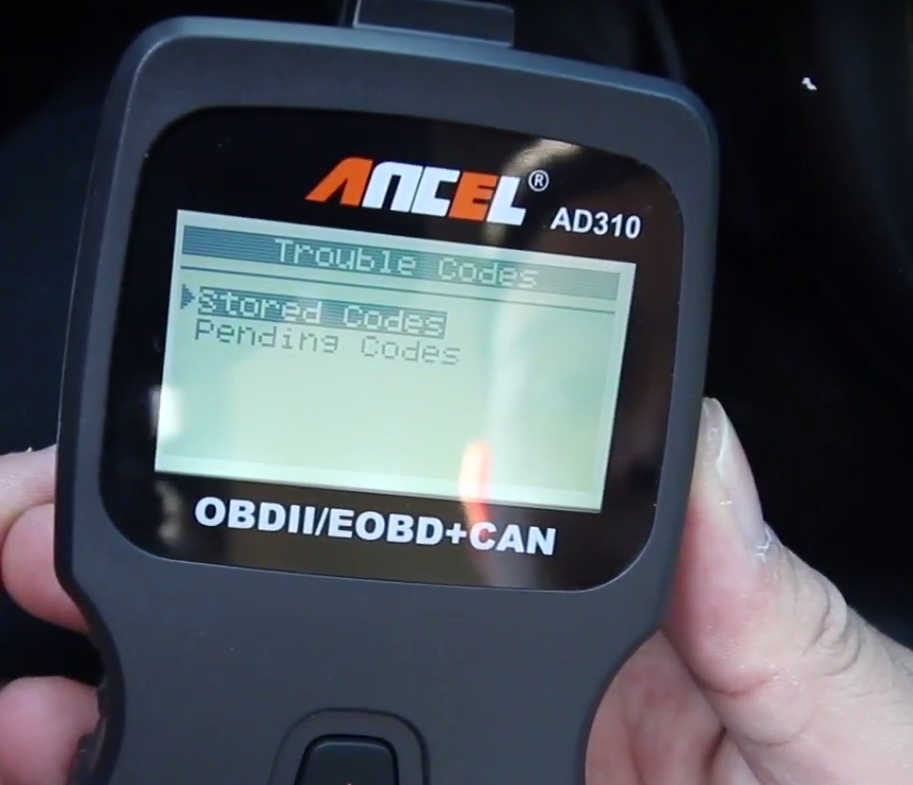

Stored Codes

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (9)

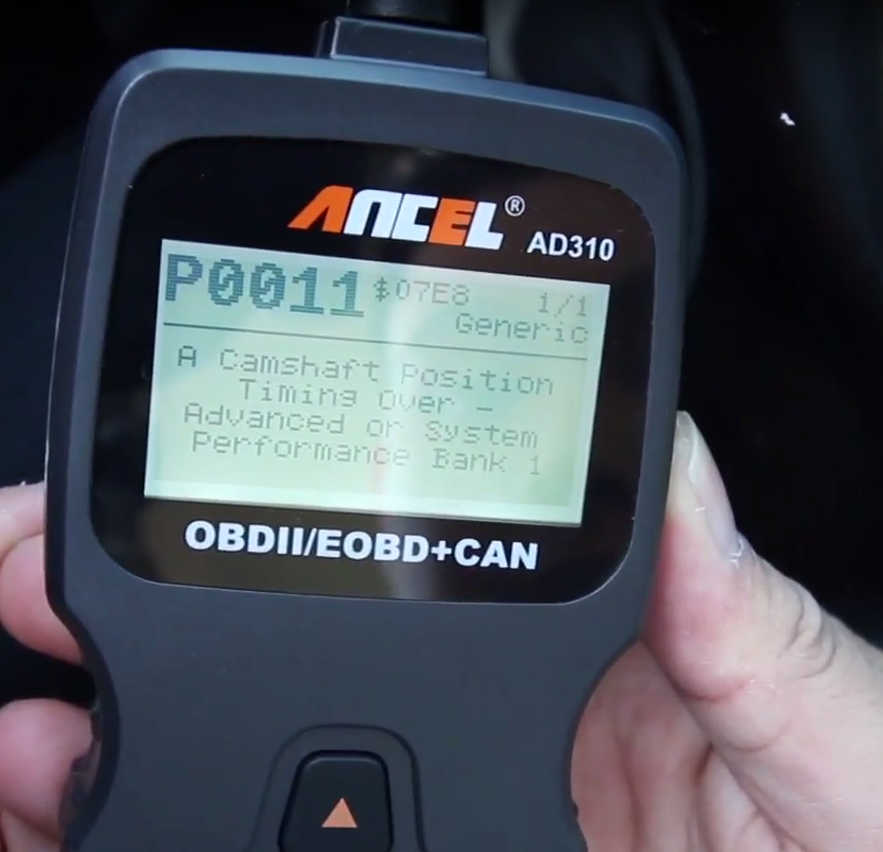

Then Ancel AD310 will show the trouble code:
P0011:A camshaft position Timing Over-Advanced or System Performance Bank1

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (10)

This problem possible causes by below reason:
1)Dirty Oil
2)Low engine oil level
3)Faulty Valve Timing Control(VTC)
4)Valve Timing Control(VTC) circuit poor electrical connector
5)Incorrect timing
6)Engine mechanical problems
7)Damaged Engine Control Module(ECM)

Query the possible causes to repair your vehicle problems,then use Ancel to erase the trouble codes.

Back to the Diagnostic menu to select “Erase Codes ”

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (11)

Erase trouble code!
Are you sure?
Press [YES] to continue

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (12)

Then the Ancel AD310 prompt “Erase Done”

How to Use Ancel AD310 to Read & Erase DTC for Hyundai (13)
