Ancel AD310 Read and Clear DTCs for Nissan

This is a test report on Ancel AD310 read and clear DTCs for Nissan,follow bellow content,you will get the info.

ancel scanner obd2 scanner-123

Procedures of Ancel AD 310 Read and Clear DTCs for Nissan:

Locate the data link connector which is a 16 pin connector.The connector usually located on diver’s side underneath the dash,connect the Ancel AD310 to the Nissan DLC.

Note:Before connecting,make sure the ignition is off.

Ancel AD310 Read and Clear DTCs for Nissan (1) Ancel AD310 Read and Clear DTCs for Nissan (2)



Once the connection built,the Ancel AD310 will be power on.It will tell you turn on the ignition and press any button to continue.

Note:Turn on the ignition does not mean you need to start the vehicle.

Ancel AD310 Read and Clear DTCs for Nissan (3)

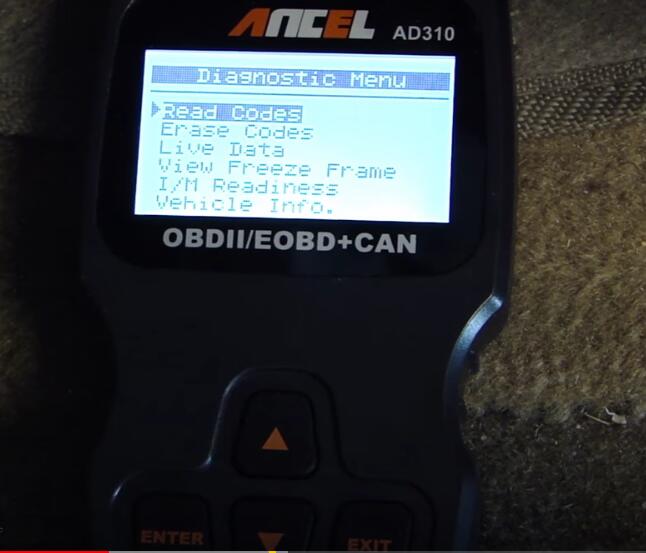

Then after the communication built,you will see the diagnostic menu on the Ancel AD310 screen,include:Read Codes,Erase Codes,Live Data,View Freeze Frame,I/M Readiness,Vehicle Info…

Ancel AD310 Read and Clear DTCs for Nissan (4)

On this vehicle right now,I don’t have any diagnostic trouble code.But here I am gonna go ahead and select “Enter” to continue

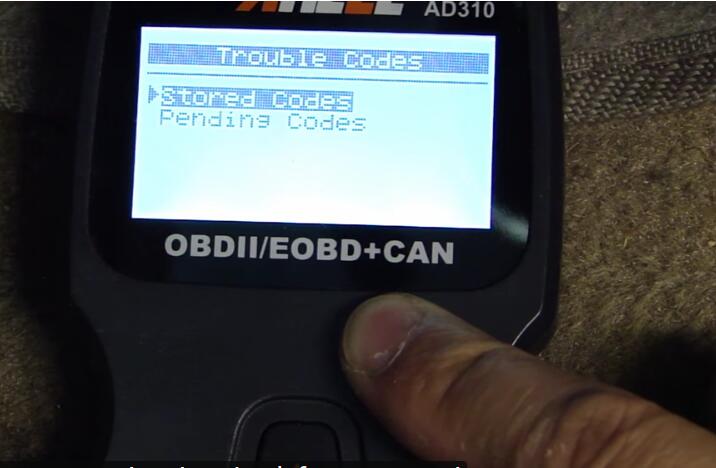

And select “Stored Codes” to continue

Ancel AD310 Read and Clear DTCs for Nissan (5)

It prompt you that “No codes are stored in the module!”

Ancel AD310 Read and Clear DTCs for Nissan (6)

Press “EXIT” to go back

If you vehicle has a diagnostic trouble code doubt typically trigger a light on your dash,it’s called the malfunction indicator light or some people commonly call it as check engine light or service engine light.

If the Ancel AD310 read out the trouble code on your vehicle,you can scroll down to the “Erase codes” and select to erase the trouble codes.

Ancel AD310 Read and Clear DTCs for Nissan (7)

Done!
