Ancel AD310 Scanner View on Chevrolet Silverado

Here show a mini test on Ancel AD310 scanner view on Chevrolet Silverado



Sorry for the unclear operation pictures

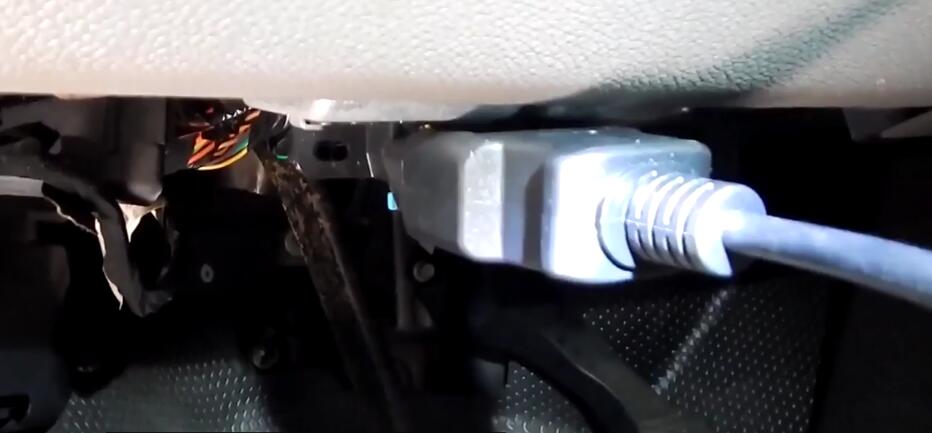

Connect the Ancel AD310 scanner (buy from Amazon) to the Silverado OBD port.

Ancel AD310 Scanner View on Chevrolet Silverado (13)

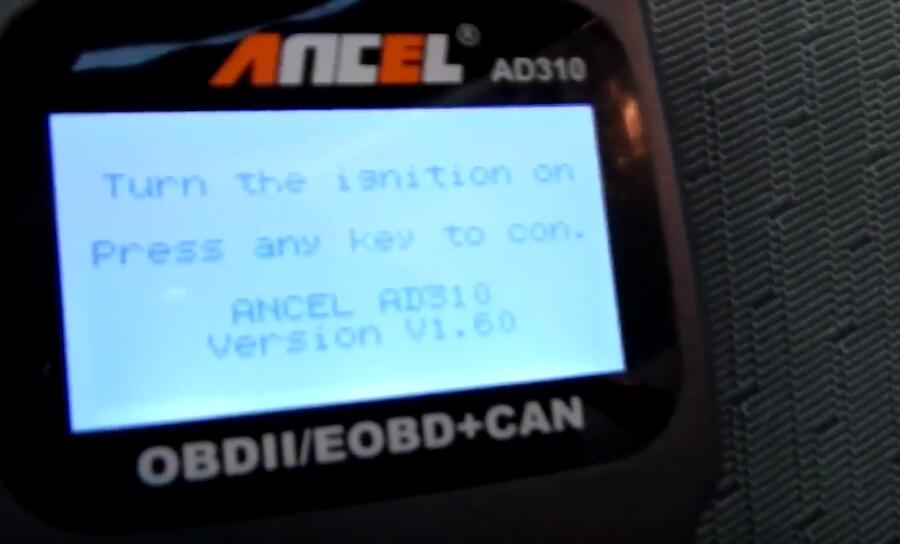

Turn the ignition on.

Press any key to continue

Ancel AD310 Scanner View on Chevrolet Silverado (2)

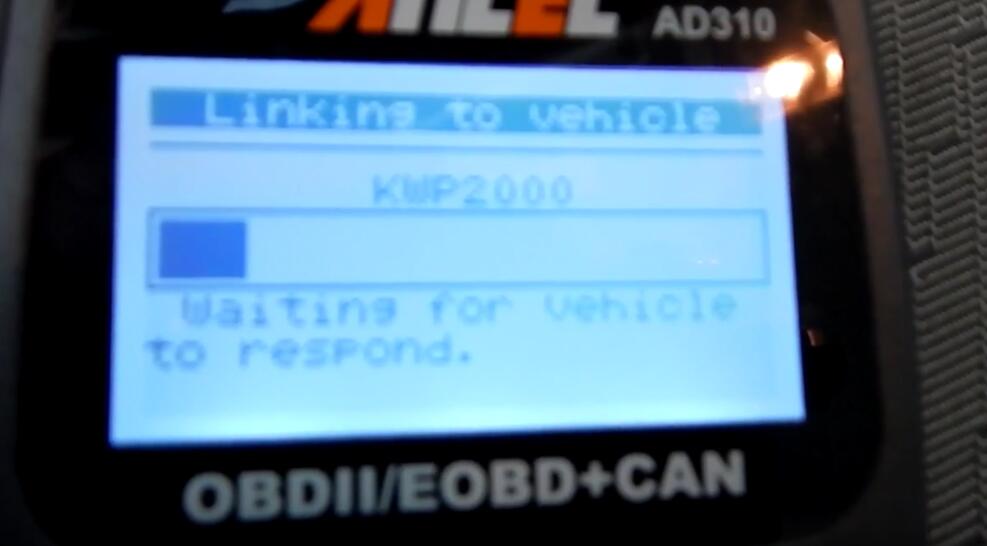

Linking to vehicle

Ancel AD310 Scanner View on Chevrolet Silverado (2)

System Status

Ancel AD310 Scanner View on Chevrolet Silverado (4)

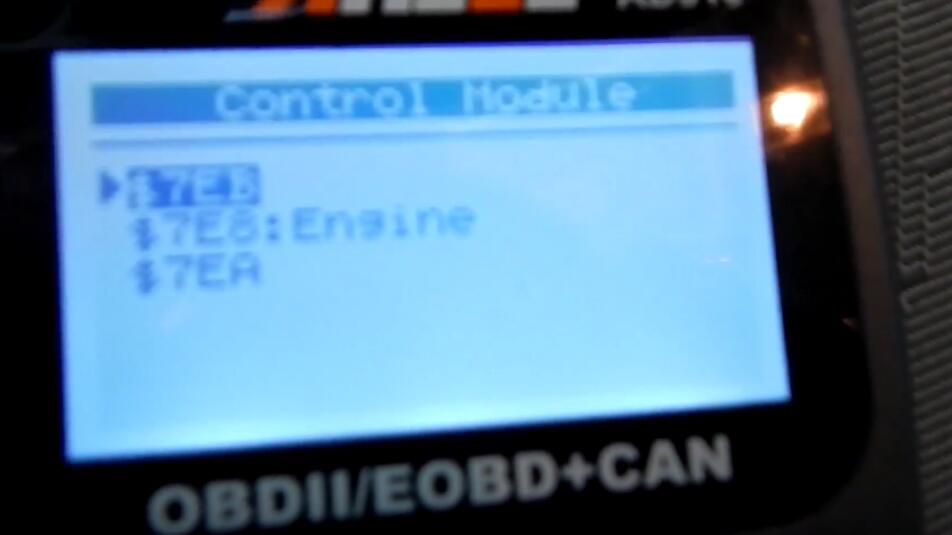

Access the control Module to select $7EB

Ancel AD310 Scanner View on Chevrolet Silverado (5)

Select “Read Codes”

Ancel AD310 Scanner View on Chevrolet Silverado (6)

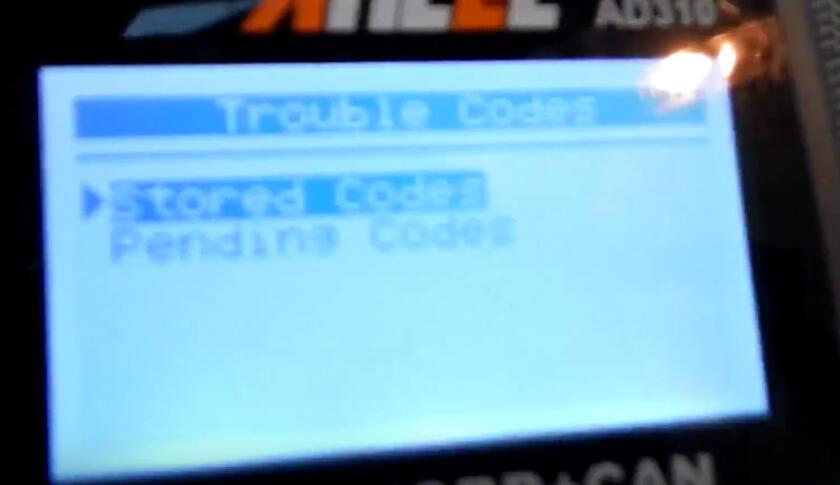

Select “Stored Codes”

Ancel AD310 Scanner View on Chevrolet Silverado (7)

It show “No codes are stored in the module”

Ancel AD310 Scanner View on Chevrolet Silverado (8)

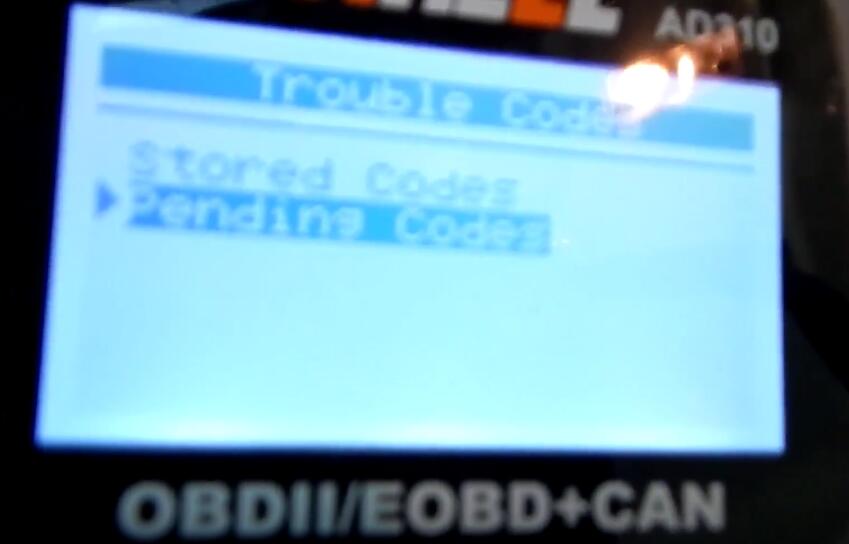

Back to select “Pending Codes”

Ancel AD310 Scanner View on Chevrolet Silverado (9)

No pending codes are stored in the module

Ancel AD310 Scanner View on Chevrolet Silverado (10)

Note:Because my this vehicle didn’t have any trouble codes(stored codes and pending codes) during this period.

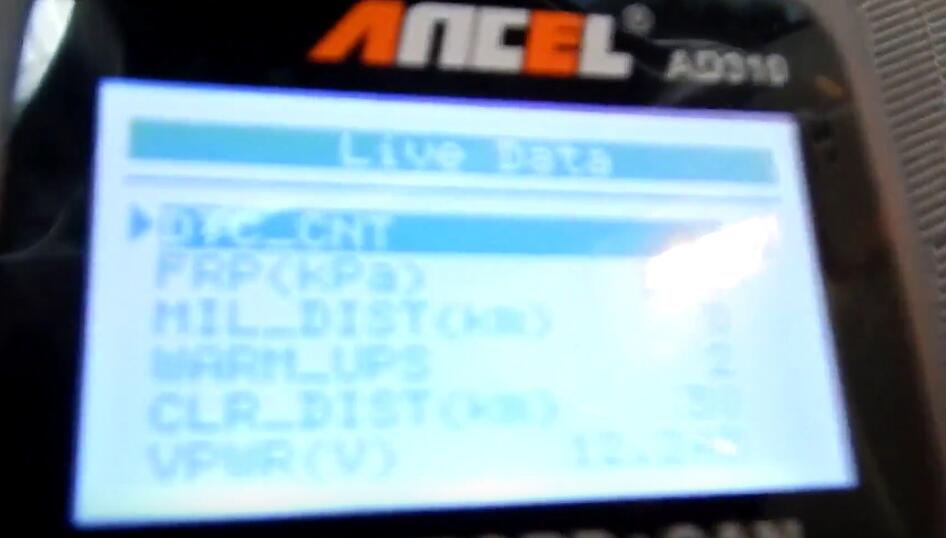

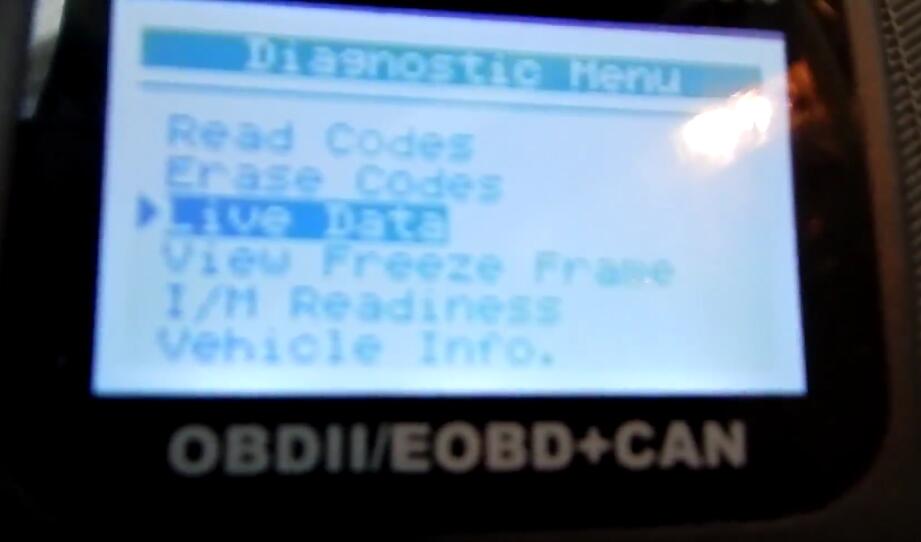

Here back to the main menu to select “Live Data”

Ancel AD310 Scanner View on Chevrolet Silverado (11) Ancel AD310 Scanner View on Chevrolet Silverado (12)

You also can view the vehicle info by Vehicle info function

Ancel AD310 Scanner View on Chevrolet Silverado (13)

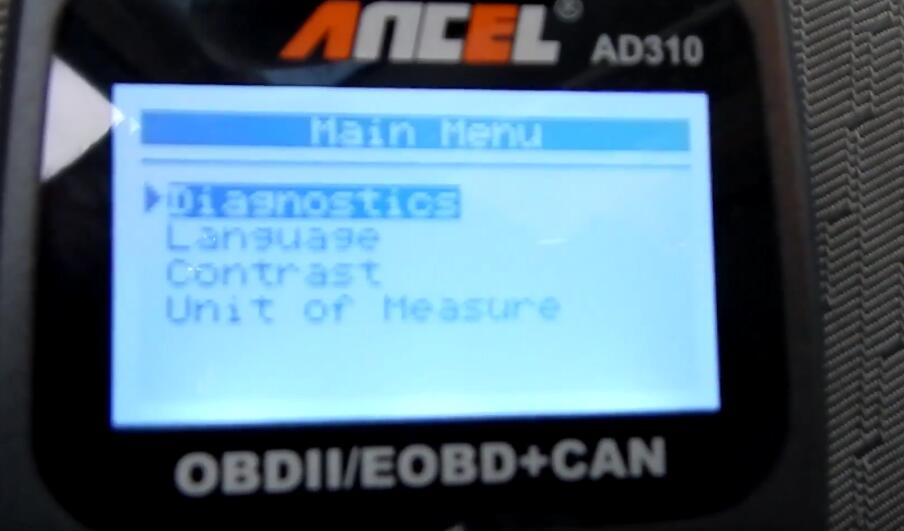

Exit to Main men

Ancel AD310 Scanner View on Chevrolet Silverado (13)
